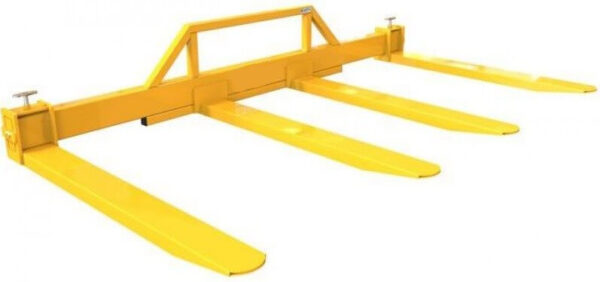

Four Fork Attachment – Adjustable
Designed for use when handling extra wide pallets or long products such as steel or plastic pipes, steel flats, plastic extrusions or timber.
Warranty Specification: 3 Years, Parts and Labour
Estimated Delivery: 20 Working Days
From the price of £3,481.50 +VAT
- Description
- Additional information
- Reviews (0)
Description
Designed for use when handling extra wide pallets or long products such as steel or plastic pipes, steel flats, plastic extrusions, or timber.
The added benefit of the adjustable wide load stabilisers is that the two outer forks can be laterally adjusted, ideal for where pallet widths vary or where the pallet bearer position varies substantially.
The forklift forks slide into the inner fork sleeves of the wide load stabiliser attachment, whilst the adjustable outer forks support and balance the load. The risk of product damage can also be reduced.
The wide load stabiliser attachment is manufactured to order, to suit your specific application.
| Model Ref | Capacity [kg] |
Width Up to [mm] |
Sleeve Length Up To [mm] |
Max Fork Size [mm] |
| AFFA-1 | 1000 | 5000 | 2000 | 140 x 50 |
| AFFA-2 | 2000 | 5000 | 2000 | 140 x 50 |
| AFFA-3 | 3000 | 5000 | 2000 | 140 x 50 |
• Outer forks laterally adjustable to allow greater flexibility when handling loads of different widths
• Four forks allow wide loads to be supported safely whilst helping to reduce product damage
• Heavy duty fork sleeves offering long service life properties
• Heavy duty cross beam ensures rigidity of the attachment
• Heel pin retention for safely securing the attachment to the forklift truck forks
• Finished in safety yellow gloss finish to ensure visibility when fitted to the lift truck
• ‘CE’ marked and supplied with Certificate of Conformity to comply with Health & Safety Regulations
A delivery charge will occur for the following postcodes:
SCOTLAND – AB10-16, 21-25, 30, 39, 99, DD, DG, PA1-19, PH1-16
SCOTTISH HIGHLANDS – AB31-38, 45-51, 56, IV1-28, 30-32, 36, 40-52, 55, KA27-28, KW1-17 PA21-41, PH17-26, 30-41, 42-44, 49-50
Please contact us for a delivery cost.
For more information or professional advice, you can contact one of our friendly team members on 01392 464656 or email us at info@westexegroup.co.uk
We’re also on social media! Give us a follow to keep up to date with everything Westexe.
Twitter – @westexedirect
Facebook – Westexe Direct
YouTube – Westexe Direct
For more products and services, visit Westexe Group to see if we can help with any other industry related services.
Additional information
| Choose Your Model | AFFA-1, AFFA-2, AFFA-3 |
|---|
Be the first to review “Four Fork Attachment – Adjustable”
